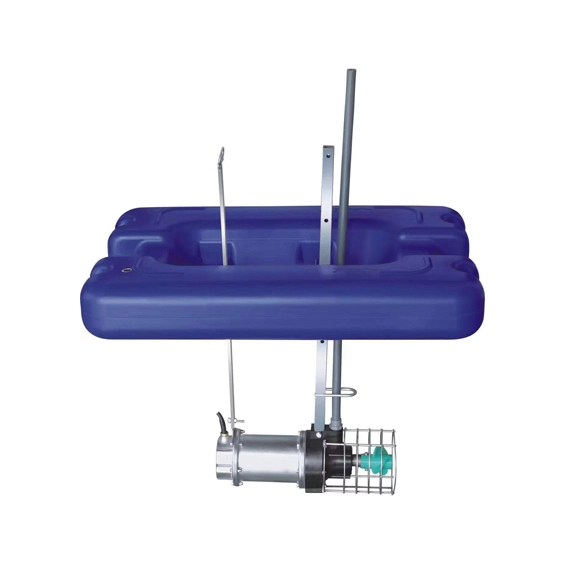

Submersible jet aerator is specially designed for aquaculture farming to increase the dissolved oxygen and push the water flow underwater. It is designed with simple structure, mainly includes high efficiency motor , gear box, nylon impeller and HDPE square float, S.S 304 adjustable bar and inlet air pipe. It become more and more popular to be widely used in aquaculture hatchery, large and deep aqua farming ponds or wastewater treatment systems to enhance oxygen.
Below are some features of submersible jet aerator :
Depth and angle control: With 2 pcs of adjustable bars, users can adjust depth and angle of the submersible jet aerator main engine as per their requested underwater. This design make it suitable for various of depth ponds.
High Oxygen Transfer Efficiency: Submersible jet aerator is highly efficient in transferring oxygen into deep water, push the water flowing under water surface, help to increase the dissolved oxygen and enhance the water quality.
Less cost: Compare with some other type of aerators, submersible jet aerator has relatively less components, reducing the potential for mechanical failures means less maintenance cost.
Corrosion-Resistant Materials: Submersible jet aerators are designed working submerged underwater, so they are made of materials that resist corrosion, ensuring longevity and reliability in harsh environments.
Simple Operation and Lightweight: Less components can be set up easily. Light weight can be installed and moved conveniently.
| Parts details & specifications of FJ-SDJ series | ||
| Part name | detail & specification | Qty |
| Motor+gear box | assembled/H Grade Insulation | 1 |
| Float | 100% new HDPE with anti-UV | 1 |
| Impeller | Nylon | 1 |
| Adjustment bar | S.S 304 | 2 |
| Support frame | S.S 304 | 1 |
| Bolt kit | S.S 304 | 1 bag |
| Model | Power | Voltage (V) | Frequency (HZ) | Aeration performance (kg O₂/Hour ) | Consumption (A) | Air intake (cm³/m) | Jet Flow distance (M) | Qty in 20GP/40HC |
| FJ-SDJ1.5 | 1.5kW /2HP | 110 - 440 | 50/60 | ≥1.3 | 3.7A | 42 | 5-10 | 85/200 |
