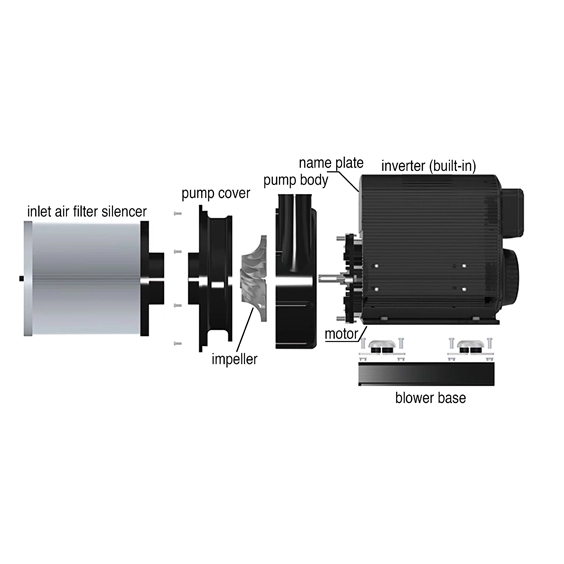

By using the advanced aerodynamic technology (aviation turbine technology), energy saving blowers of FJ-HSC series----high speed centrifugal blowers offer high efficiency with less consumption. It is designed with no physical friction between impeller and shaft, mainly parts are air suspension bearings, permanent magnet high-speed motors, and high precision aviation-grade impellers. FJ-HSC series high speed centrifugal blower is characterized by high efficiency, low noise, and low energy consumption, which makes it a excellent choice for aquaculture aeration, waste water treatment ,etc.
The FJ-HSC series is an efficient air blower for fish farming, wastewater treatment, drying systems, and other industrial applications. Its compact design delivers stable airflow with low energy consumption and minimal maintenance.
High efficiency: Maximum 85% efficiency means, with same pressure and consumption, FJ-HSC series centrifugal blowers can offer much more air flow.
Low cost: Low consumption, energy saving means less electric cost during the whole long life span.
Minimum maintenance: No physical friction between impeller and shaft, fewer components, FJ-HSC series centrifugal blowers need very little maintenance.
Broad application: Designed with small volume and light weight, FJ-HSC series centrifugal blowers can be used in aquaculture aeration, waste water treatment, various of drying processing lines and industrial.
| Model | FJ-HSC003 | FJ-HSC004 | FJ-HSC5P5 | FJ-HSC7P5 | FJ-HSC011 | FJ-HSC015 | FJ-HSC185 | FJ-HSC022 |
| Rated Power | 3kW | 4kW | 5.5kW | 7.5kW | 11kW | 15kW | 18.5kW | 22kW |
| Max pressure | 12kPa | 16kPa | 20kPa | 25kPa | 30kPa | 32kPa | 35kPa | 38kPa |
| Max flow | 1200m³/h | 1400m³/h | 1620m³/h | 1800m³/h | 2400m³/h | 2600m³/h | 2800m³/h | 3000m³/h |
| Max speed | 12900rpm | 15000rpm | 17250rpm | 18000rpm | 18000rpm | 19000rpm | 20000rpm | 21000rpm |
| Max frequency | 430Hz | 500Hz | 575Hz | 600Hz | 600Hz | 633Hz | 666Hz | 700Hz |
| Input Current | 6A | 8A | 10A | 15A | 24A | 32A | 40A | 43A |
