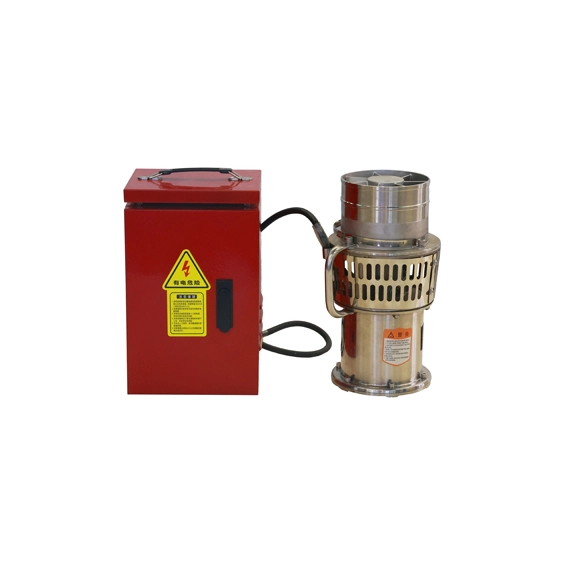

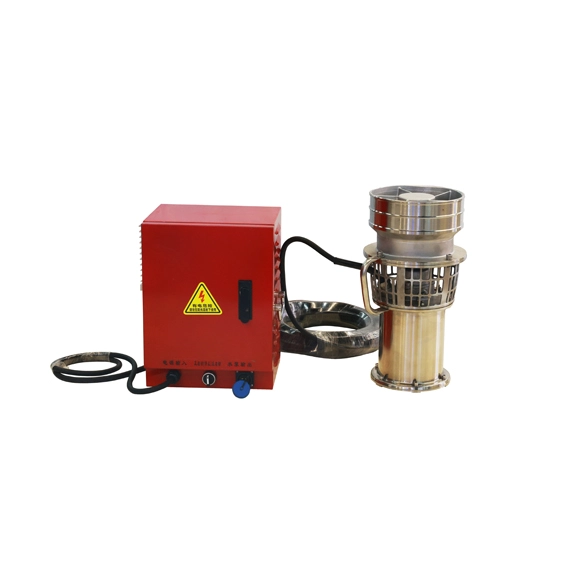

The portable permanent magnet submersible pump is developed from the traditional flood control & rescue pump and submersible pump, flow pump. It features a tightly packed structure, small dimensions, light weight, making it convenient and easy to carry. This pump is mainly used in situations like flood control and emergency rescue, drought mitigation and irrigation, and dealing with water logging during unforeseen dangerous circumstances. No infrastructure building is necessary. The pump can be directly submerged in the water or used as a lifebuoy to suspend the water surface. With light weight design, one adult person can carry it. The motor has excellent cooling capabilities and emits minimal noise. The control system utilizes variable frequency control to enable speed adjustment. It can be directly hooked up to a temporary generator set or the municipal power grid to start working. The water outlet is fitted with a hose quick coupling, which is fast to install and simple to handle. The input pipe uses a village fire hose that is light and has good winding performance. This pump also can be used for aquaculture ponds for fill up the pond and dry out the pond.
Low power, high flow
Permanent magnet motor, high efficiency
Small size , light weight, easy carry
Simple structure, easy to operate
Stainless steel material, suitable for various environments
| Model | power | Head | flow | diameter | weight | diemension |
| kW | m | m³/h | mm | kg | mm | |
| FJ200-8-5.5 | 5.5 | 8 | 200 | 150 | 17 | 520( height) |
| FJ260-4-5.5 | 5.5 | 4 | 260 | 200 | 17 | 520( height) |
| FJ200-10-7.5 | 7.5 | 10 | 200 | 150 | 18 | 570( height) |
| FJ300-6-7.5 | 7.5 | 6 | 300 | 200 | 18 | 570( height) |
| FJ260-10-11 | 11 | 10 | 260 | 200 | 20 | 570( height) |
| FJ400-8-11 | 11 | 8 | 400 | 250 | 20 | 570( height) |
| FJ450-10-15 | 15 | 10 | 450 | 250 | 23 | 570( height) |
