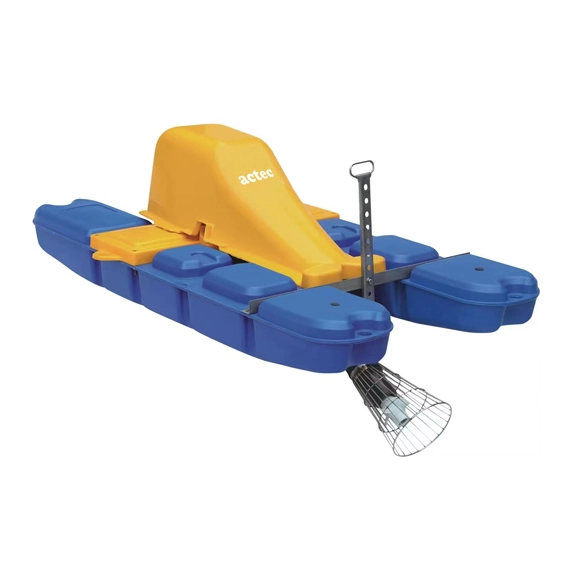

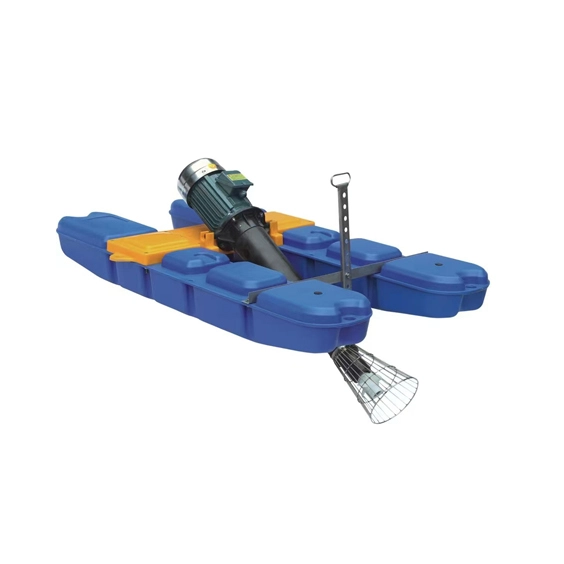

Deep jet aerator is one type of classical aerator specially designed for aquaculture deep pond to increase the dissolved oxygen and push the water flow underwater. It is designed with simple structure, mainly includes motor engine, impeller, and HDPE float, S.S 304 adjustable bar.Deep jet aerators are essential component of modern aquaculture, particularly in intensive and large-scale farming to help maintaining a healthy and oxygen-rich environment for aquatic organisms.
Below are some features of deep jet aerator :
Depth and angle control: With the adjust bar, users can adjust depth and angle of the deep jet aerator main engine depending on their need. This design make it suitable for various of depth ponds.
High Oxygen Transfer Efficiency: Air is injected at high velocity through the impeller with nozzle, creating fine bubbles underwater and brings oxygen to the deep parts of the water column. It help a lot to increase the dissolved oxygen and enhance the water quality.
Less cost: Compare with some other type of aerators, deep jet aerator has relatively less components, reducing the potential for mechanical failures means less maintenance cost.
Corrosion-Resistant Materials: Deep jet aerators are designed working submerged underwater, so they are made of materials that resist corrosion, ensuring longevity and reliability in harsh environments.
Simple Operation and Lightweight: Less components can be set up easily. Light weight can be installed and moved conveniently.
| Parts details & specifications of FJ-DJ series | ||
| Part name | detail & specification | Qty |
| Motor engine | assembled/2 poles / H Grade Insulation | 1 |
| Motor engine cover | 100% new PP with anti-UV | 1 |
| Float | 100% new HDPE with anti-UV | 2 |
| Impeller | S.S 304 | 1 |
| Impeller cover | S.S 304 | 1 |
| Adjustment bar | S.S 304 | 1 |
| Support shaft | S.S 304 | 2 |
| Bolt kit | S.S 304 | 1 bag |
| Model | Power | Voltage (V) | Frequency (HZ) | Aeration performance (kg O₂/Hour ) | Consumption (A) | Qty in 20GP/40HC |
| FJ-DJ1.5 | 1.5kW /2HP | 110 - 440 | 50/60 | ≥0.8 | 3.7A | 80/180 |
