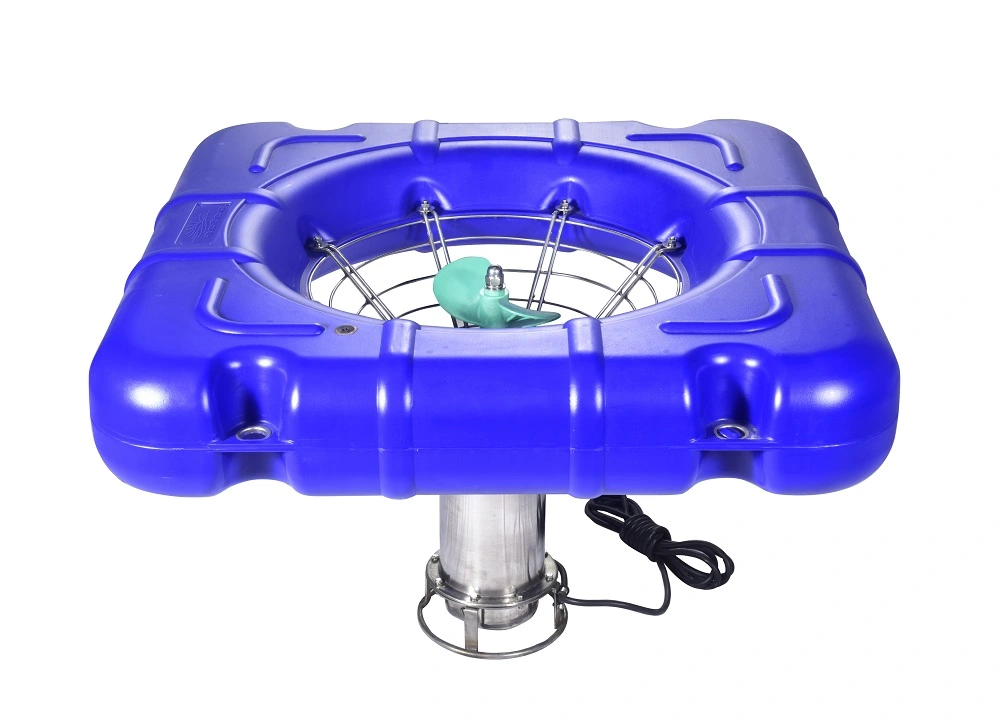

Splash aerators are usually used in fish farming to increase the oxygen levels in water ponds. Inverted water cooling splash aerator is our hot seller splash aerator. It is designed with simple structure, high efficiency motor, less cost, get high contentment from customers. With less weight and dimensions, inverted water cooling splash aerator is widely used in small-scale aquaculture or wastewater treatment systems like tilapia farming tank, fish ponds to improve oxygen level.
Our inverted water cooling splash aerator has below features:
No gear oil: Being designed without gear box, prevent oil leaking problem and water environmental protection.
High quality material: the motor engine and support net mesh are made of stainless steel 304, the float is made from 100 % new HDPE with anti-UV, impeller is made from nylon. These materials can ensure the aerator under harsh environments.
High efficiency: High efficiency motor with spiral impeller design, bring the air into water and splash the water increased the dissolved oxygen. Meanwhile it can help exchange the water up and down, improve the water oxygen at pond bottom.
Less cost: Compare with some other type of aerators, inverted water cooling splash aerator has relatively less parts, make it less purchasing cost and less maintenance cost. It is really an ideal choose for aquaculture farming.
Simple Operation and Lightweight: Less components can be set up easily. Light weight can be installed and moved conveniently.
| Parts details & specifications of FJ-WC series | ||
| Part name | detail & specification | Qty |
| Motor | energy efficient /S.S 304 /H Grade Insulation | 1 |
| Float | 100% new HDPE with anti-UV | 1 |
| Impeller | nylon | 1 |
| Support mesh net | S.S 304 | 1 |
| Bolt kit | S.S 304 | 1 bag |
| Model | Power | Voltage (V) | Frequency (HZ) | Aeration performance (kg O₂/Hour ) | Consumption (A) | Weight (KG) | Qty in 20GP/40HC |
| FJ-WC1.5 | 1.5kW /2HP | 110-440 | 50/60 | ≥2.4 | 3.2A/7.8A | 33 | 100/220 |
| FJ-WC2.2 | 2.2kW /3HP | 110-440 | 50/60 | ≥4.3 | 6.5A | 34 | 100/220 |
