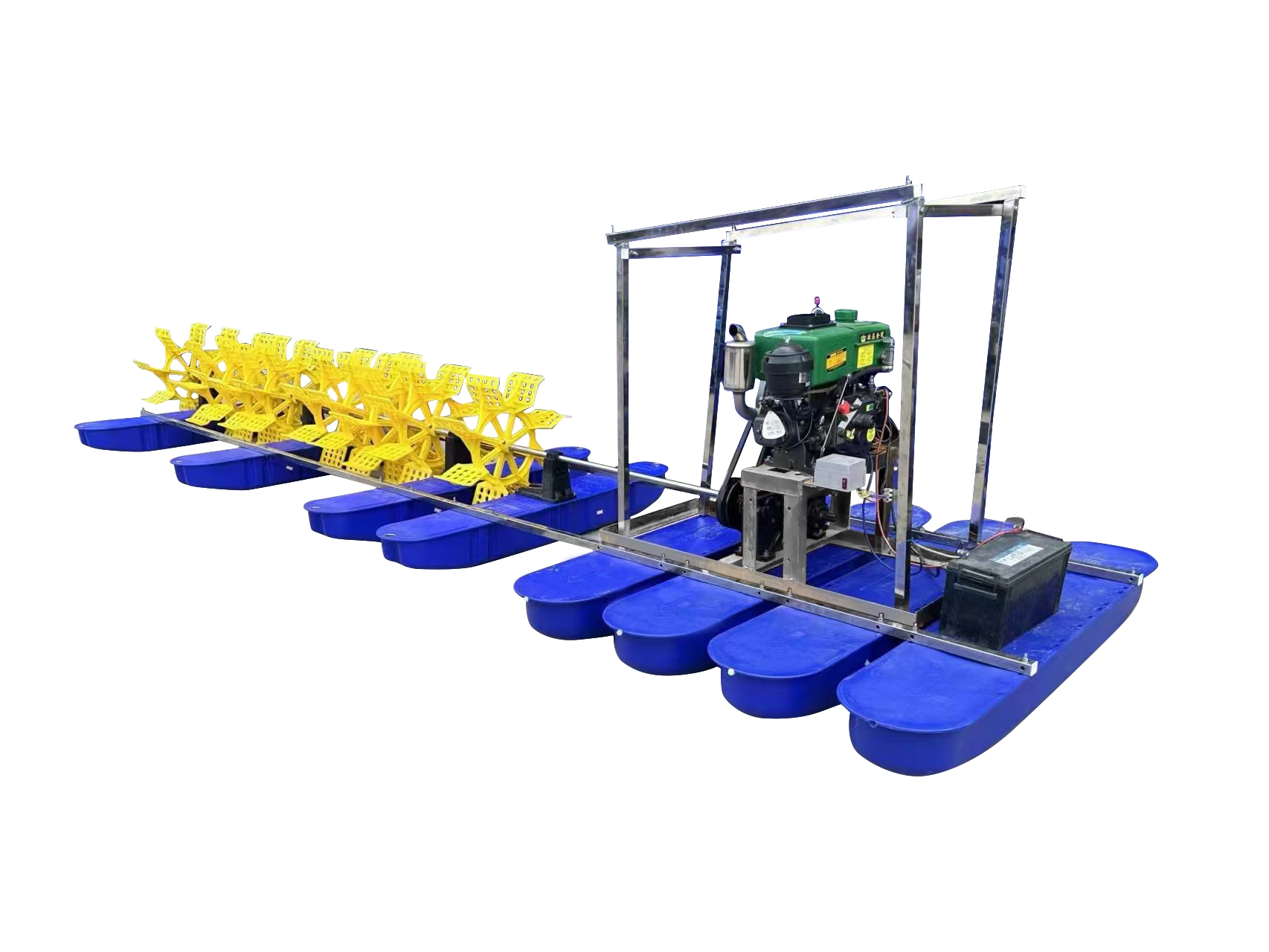

Diesel powered paddle wheel aerator is an economic and ideal choice for farms located in areas with no or not stable electrical supply. FJ-DL series diesel powered paddle wheel aerators have long-armed multi-impellers, suitable for large aquaculture ponds.
Below are some features of diesel powered paddle wheel aerators:
High quality and durable lifespan: Designed with diesel engines with spare parts inside, suitable for various aquaculture environments.
Power Independence: Diesel powered paddle wheel aerators can be operated without a stable electrical grid, making them a top choice for off-grid and rural locations.
High-Performance Capability: High torque and reliability of diesel engines ensure paddle wheel aerators work continuously even in tough conditions.
Enhanced Water Quality: Raises dissolved oxygen levels, reduces harmful gases, and prevents water stratification.
Flexibility in Operation: Diesel aerators can be used in a variety of environments with limited space for electrical connections. Their portability allows for convenient relocation as per operational needs.
As an aquaculture aerator, the diesel-powered long-arm model should be selected according to pond area, stocking density, operating hours, and required oxygen-transfer capacity. Green color high efficient impeller is another good choice for all paddle wheel aerators. Just feel free to contact us for more further information!
| Model | Power | Voltage (V) | Frequency (HZ) | Aeration performance (kg O₂/Hour ) | Qty in 20GP/40HC |
| FJ-DL | 7.5kW /10HP | 110-440 | 50/60 | ≥8.5 | 23/55 |
| Parts details & specifications of FJ-DL10 | ||
| Part name | detail & specification | Qty |
| Diesel engine | own brand with spart parts for aquaculture various conditions | 1 |
| Gear reducer | 1 | |
| Float | 100% new HDPE with anti-UV / size: 1750*330*206mm | 8 |
| Impeller | 100% new PP with anti-UV /diameter: 670mm | 10 |
| Shaft | Whole solid S.S 304 | 1 |
| Frame | S.S 304 | 1 |
| Bearing supporter | Nylon | 4 |
| Movable joints | S.S 304 & rubber bushing | 1 |
| Bolt kit | S.S 304 | 1 bag |
